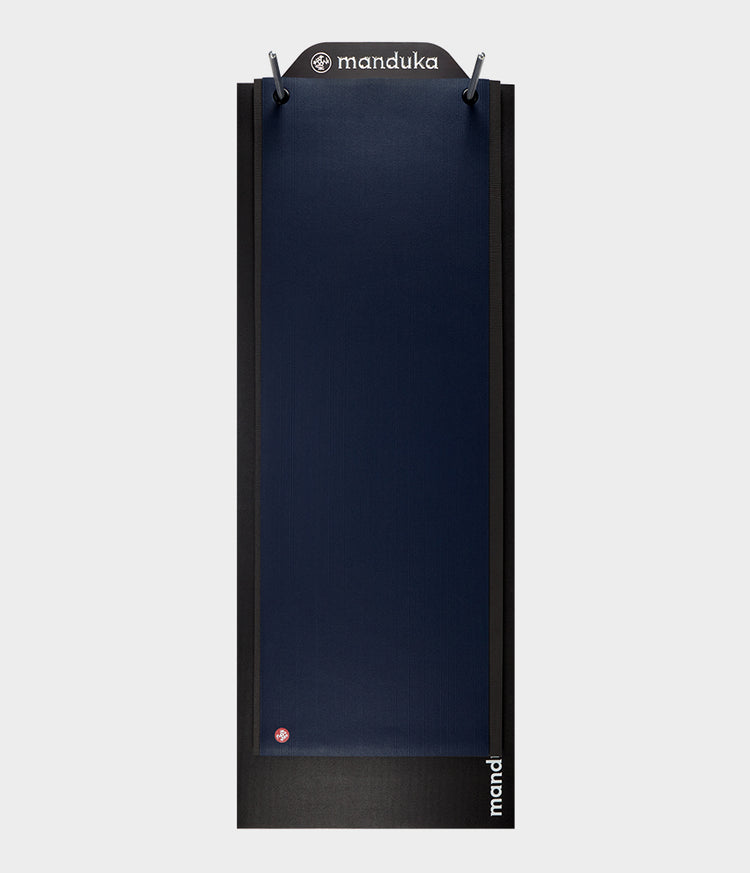

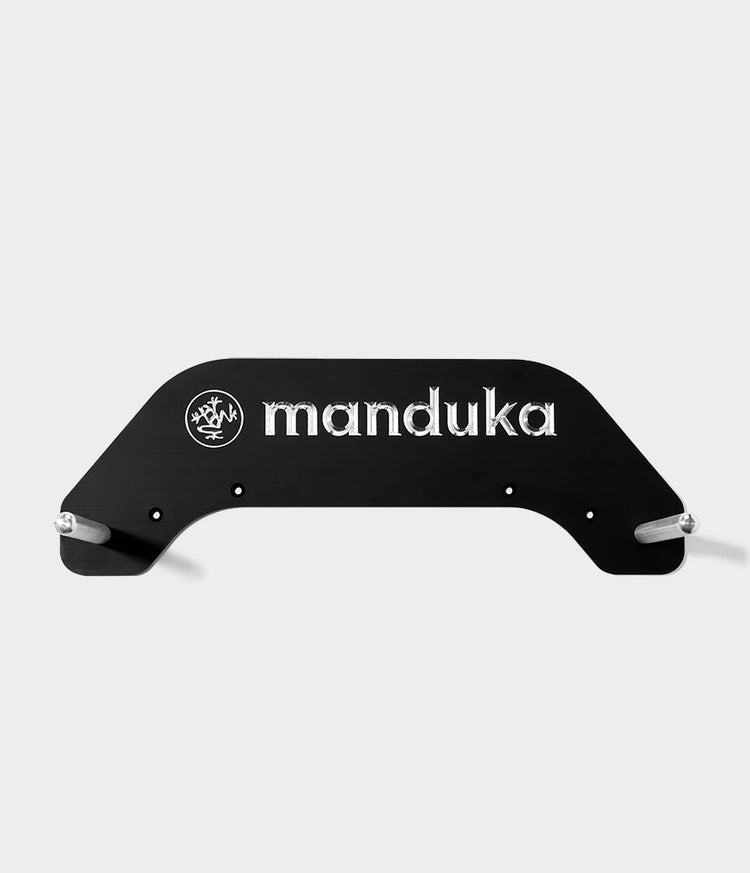

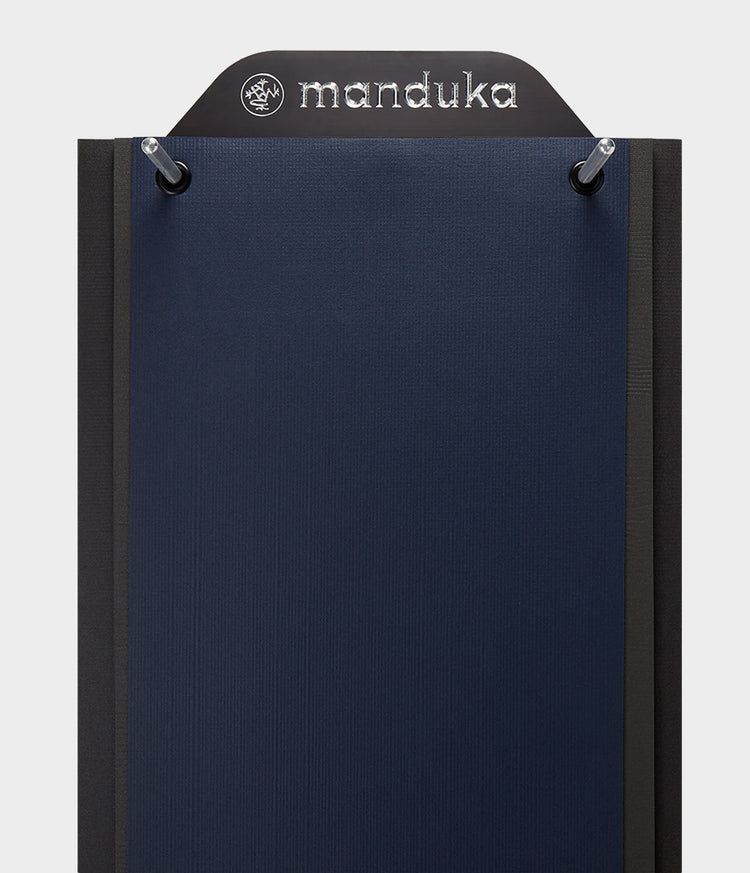

The Wall Mat Rack is a durable, wall-mounted storage solution designed for gyms, studios, and hospitality spaces. Built from 100% aluminum, it delivers long-term performance in high-use environments while keeping mats organized and within reach.

Holds up to 10 mats and is compatible with Manduka PRO®, PROlite®, P/ROX, and ENDURA mats with grommets/eyelets. A black anodized aluminum finish with an engraved Manduka logo provides a clean, elevated finish.

Designed for secure mounting to plaster or brick walls. Includes the wall mat rack, posts, and all required hardware for efficient installation.

• Lightweight aluminum construction engineered for strength and long-term durability.
• High-capacity storage holds up to 10 mats for efficient organization.

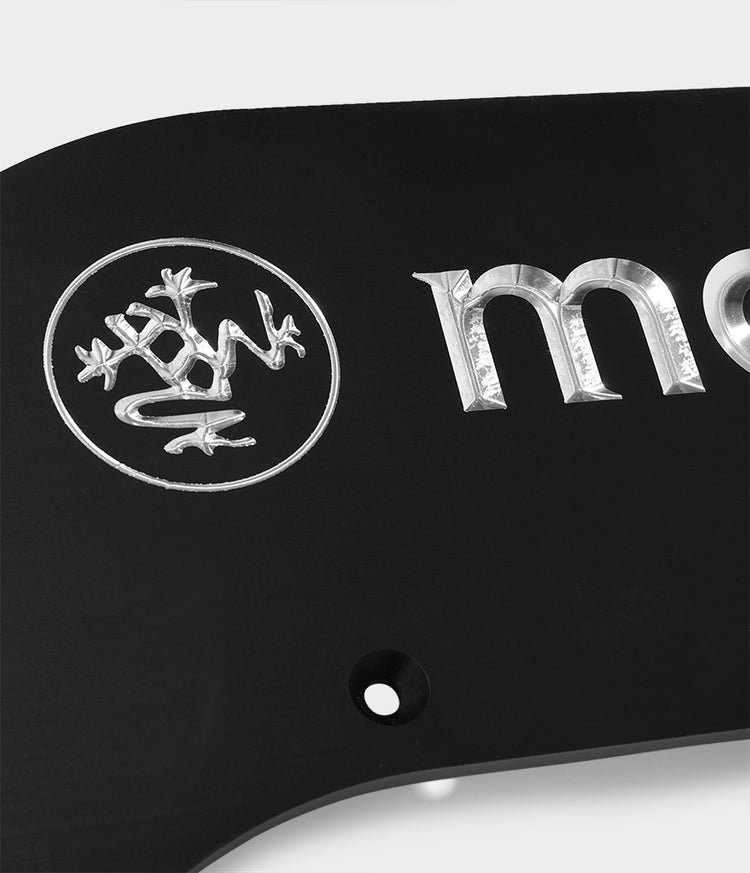

• Refined finish with black anodized aluminum and engraved bright silver Manduka logo
• Designed for secure mounting to plaster or brick walls.
• Complete installation kit includes wall back plate, peg extenders, and all required fasteners and anchors.
• Compatible with Manduka PRO®, PROlite®, P/ROX, and ENDURA mats made with grommets/eyelets.

• Material: 100% aluminum
• Dimensions: 23" W x 8" H (58 cm x 22 cm) x 0.25" D (6 mm)
• Weight: 3.9 lbs (1.8 kg)

Post Dimensions

• Post Spacing: 20" (51 cm) center-to-center, compatible with mats featuring eyelets/grommets.
• Post Length: 8" (20 cm), extends outward from wall.
• Primary Hanging Hole Spacing: 15.75" (40 cm); aligned for standard wall stud mounting (U.S.)
• Secondary Hanging Hole Spacing: 9.875" (25 cm); for use with anchors to provide additional support and stability
• Installation Type: Wall-mounted with included hardware

Installation Instructions
Important: Install into a structurally sound wall surface. Professional installation recommended for commercial environments.

1. Attach Posts to Wall Plate: Use the included screws and Allen wrench (hex key) to secure posts to the wall mount plate. Tighten fully before installation.
2. Position the Rack/Select desired height and location, allowing clearance for mat length and easy access.
3. Mark Mounting Points: Hold the assembled rack in position and use a level to mark all mounting holes.
4. Mount to Studs (Preferred – U.S.): Align primary hanging holes (15.75") with wall studs and secure using provided screws.
5. Add Anchors for Additional Support: Use secondary hanging holes (9.875") with included anchors to reinforce installation.
6. Masonry Installation (Brick/Concrete): Pre-drill holes with a masonry bit, insert anchors, and secure the wall plate with screws.
7. Final Check: Ensure rack is level and all hardware is tightened before use.
8. Load Mats Evenly: Distribute mats across posts. Do not exceed capacity of 10 mats.

Wipe down with a soft cloth to remove dust, dirt, and fingerprints. For deeper cleaning, use a warm, damp cloth. Dry completely after cleaning to prevent moisture buildup.

Aluminum is naturally corrosion-resistant; however, exposure to harsh environments such as salt air, constant moisture, or improper cleaning without fully drying may cause surface dulling or minor corrosion over time.
